What are the advantages of jaw crusher?

Time：2019-11-07 14:48:16 Share To

The jaw crusher is abbreviated for smashing. It is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with compressive strength of not more than 320Mpa, which are divided into coarse and fine. The series of products are in specifications, and the feeding size is from 125mm to 750mm, which is the * choice for primary crushing.

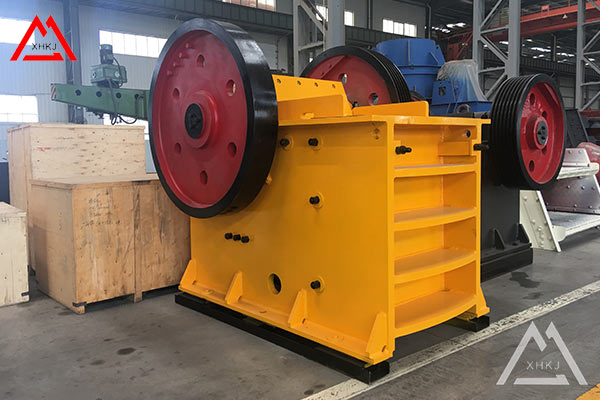

The main part of the smashing is the seesaw, the motor drives the belt and the pulley, and the eccentric shaft moves the squat up and down, and the material is crushed by multiple forces such as pressing, smashing and grinding. Unique flywheel design with low vibration.

Working principle When the jaw crusher is working, the motor drives the belt and the pulley. The eccentric shaft moves the moving jaw up and down. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, which pushes the moving jaw to the fixed jaw. At the same time, the material is crushed or chopped to achieve the purpose of crushing; when the moving down, the angle between the toggle plate and the moving jaw becomes sm er, and the moving jaw is separated from the fixed jaw by the action of the pull rod and the spring. The broken material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the crushing maneuvering cycle motion crushes and excretes the material to achieve mass production.

The jaw crusher can meet the production needs of customers, and its advantages are as follows:
1. Simple structure, sm volume, light weight, large production capacity and low production cost.
2. Compared with the traditional crushing equipment, the crushing chamber design is very deep, so the crushing ratio is larger and the output is higher.
3, with selective crushing effect, and the crushed product has a relatively uniform particle size, and the shape is *ly cubic stone, which is widely used in bridge construction, high-speed road construction and other fields.
4. The wearing parts are new high-strength wear-resistant materials in China, with low loss and long service life, which can bring considerable economic benefits to customers.
