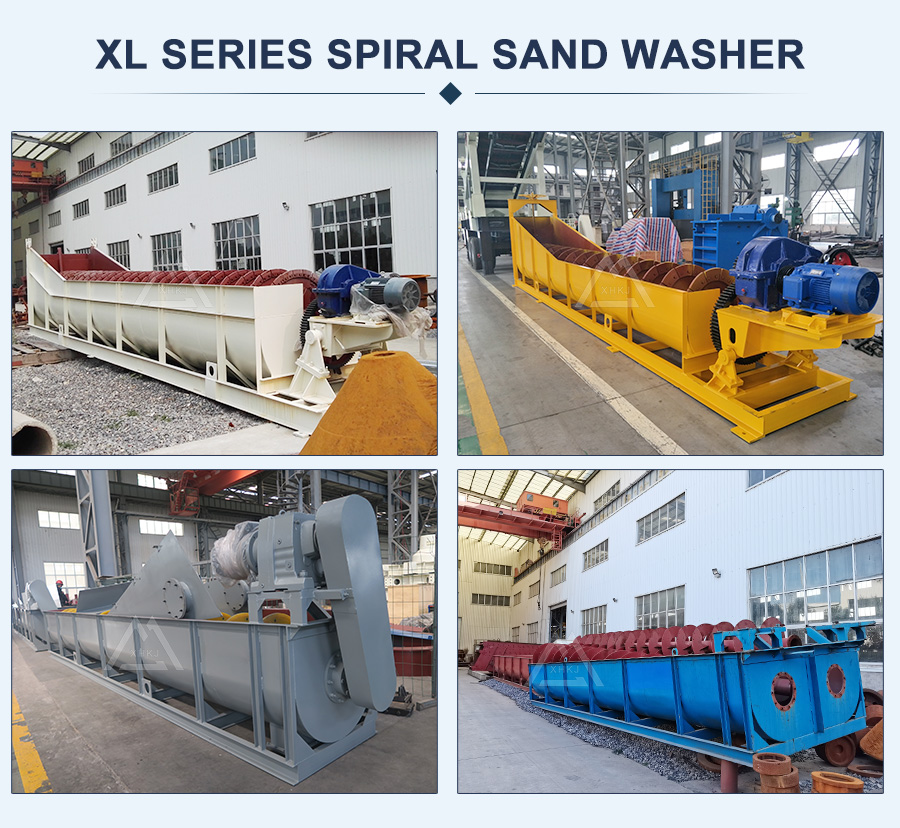

XL series spiral sand washing machine

Input Size:≦10

Capacity:40-200

Type:Necessary Auxiliary Equipment

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • facebook
  • youtube
  • linkedin
  • google+
  • twiter
  • wiki
  • blogspot

Product Description

XL series spiral sand washing machine application field: widely used in stone factories, mixing stations, building materials, water saving and hydropower.


The XL series spiral sand washer is a spiral cleaning device. It has low power, good performance and good sealing. It reduces the loss of fine sand and stone dust during work. It guarantees the cleaning and dewatering of the sand mechanism in the sand production line.

Working Principle

During the operation, the spiral sand washer rotates by the force of the spiral impeller, rotates the impeller and rolls the sand mechanism in the machine body, so that the mechanical sand is broken and milled, and the impurities covering the sandstone surface are eliminated. Destroy the water vapor layer of the coated sand to promote dehydration. At the same time, add water to form a strong water flow, remove foreign matter with less impurities and small specific gravity in time, and discharge from the overflow port to complete the cleaning work, and finally rinse the mechanical sand with water. The rotation of the helical impeller enters the discharge conduit.

Features

1, strong processing ability, high washing rate, low power consumption, good sealing structure, fully enclosed transmission, adjustable jaws.
2, the product is efficient, durable, clean, dehydrated, fine-grained products remain stable.

Specification

Model Screw diameter(mm) Length of Chute (mm) Max feeding size(mm) Capacity (t/h) Speed (r/min) Power (kw) Water Consumption(t/h) Overall dimension(L×W×H)(mm) Weight(t)
XL508 508 6705 ≦10 20 38 5.5 6-60 8000*2343*1430 2.67
XL610 610 7225 ≦10 40-50 32 7.5 6-63 8000*2050*1400 3.80
XL762 762 7620 ≦10 50-75 26 11 9-63 8545*2650*3862 5.23
XL920 920 8026 ≦10 100 18 11 10-80 8715X1632X2075 4.6
2XL920 920 8026 ≦10 150-180 18 2*11 20-160 8715X2602X2075 7.9
XL1115 1115 8532 ≦10 175 18 15 20-150 9231X1833X2126 5.6
2XL1115 1115 8532 ≦10 200-250 18 2*15 40-300 9231X2995X2126 10
