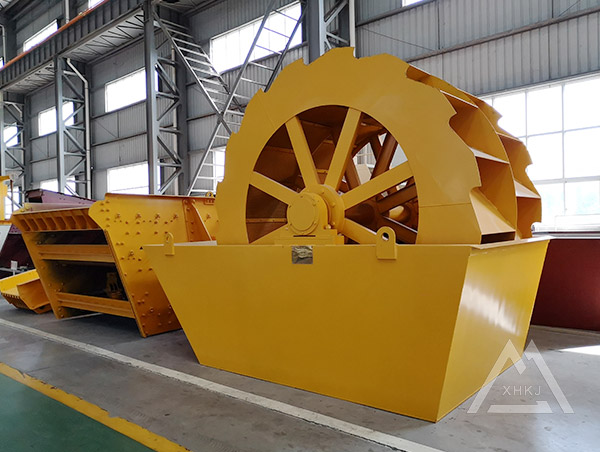

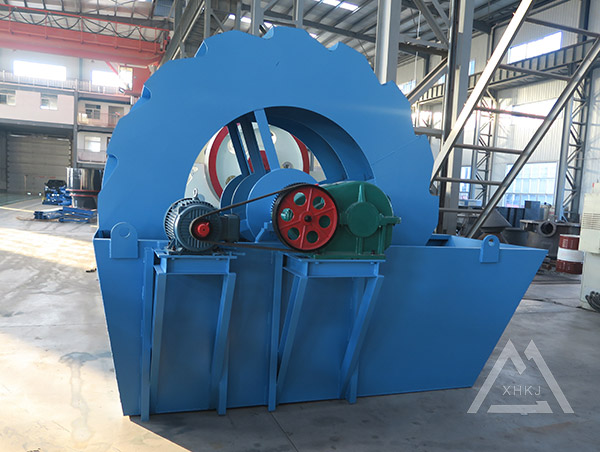

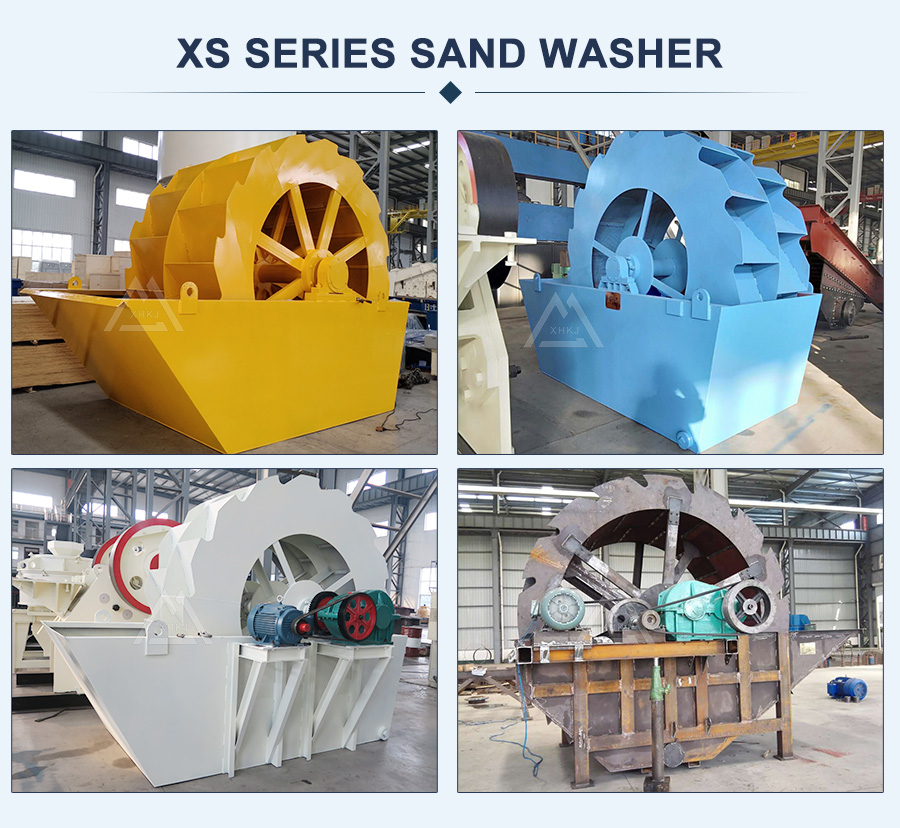

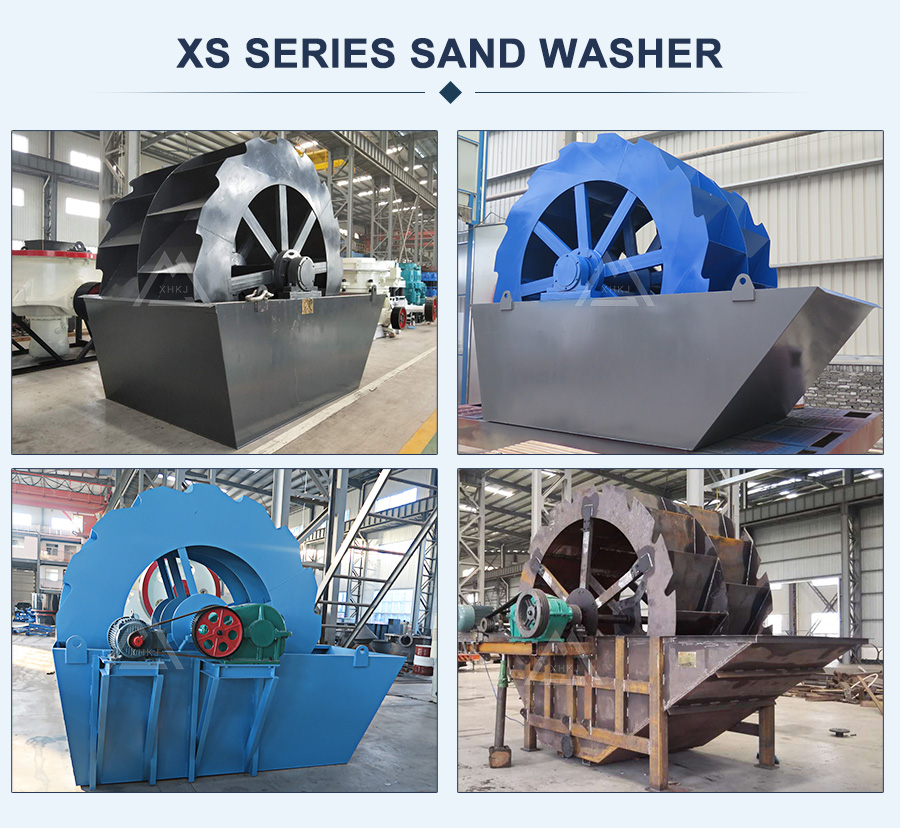

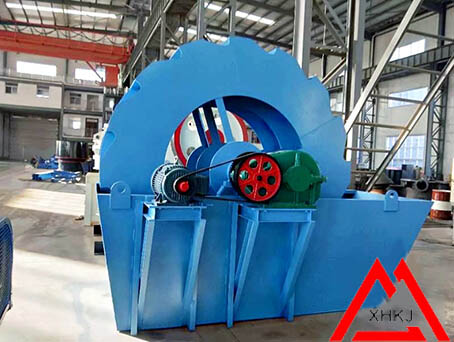

XS Series Sand Washer

Input Size:≦10 mm

Capacity:20--180THP

Type:Necessary Auxiliary Equipment

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • facebook
  • youtube
  • linkedin
  • google+
  • twiter
  • wiki
  • blogspot

Product Description

The bucket wheel sand washer cleans and separates stone powder and dust. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects. The sand washer is a kind of high efficiency sand washing equipment operated with sand maker. This series of sand washer features the following advantages: rational structure, convenient maintenance, great handling capacity, low power consumption and high washing cleanliness.




Working Principle

Sand washing machine equipment drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.

 Zenith sand washing machine equipment, sand washing machine with CE

Features

1. Simple structure.
2. The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing.
3. New sealing structure and reliable transmission device.
4. Reasonable structure.
5. High capacity, low power consumption.
6. Easy structure, stable operation.

 silica sand mining machine washing machine for sale, gravel washer machine price

Specification



Model XS2600 XS2600II XS2800 XS3200 XS3600
Diameter of The Wheel Bucket(mm) 2600 2600 2800 3200 3600
Rotation Rater (r/min) 2.5 2.5 1.2 1 1
Maximum Feeding Size(mm) ≦10 ≦10 ≦10 ≦10 ≦10
Processing Capacity(t/h) 20~50 30~70 50~100 80~120 120~180
Motor Power (kw) 5.5 5.5 7.5 11 15
Overall Dimensions(mm) 3515*2070*2672 3515*2070* 2672 3900*3300* 2990 3965*4440* 3410 4355*4505* 3810
Weight (kg) 2500 2900 3980 7270 9430
