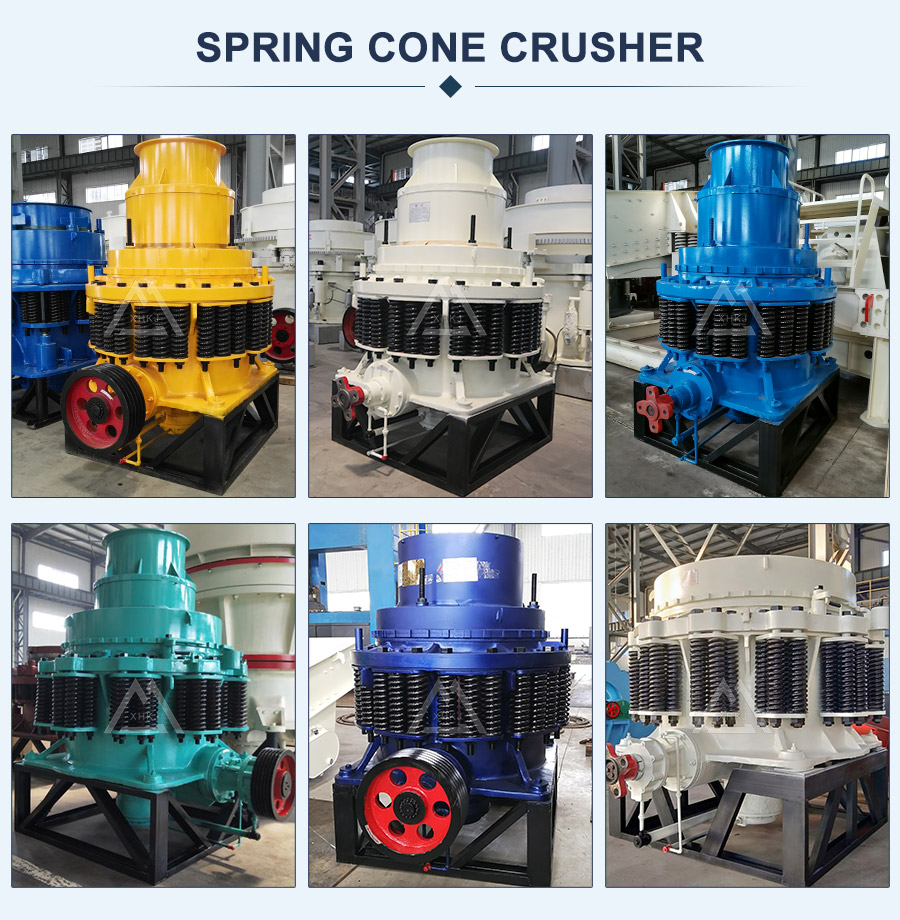

Spring cone crusher

Overview:    Spring cone crusher can crush materials of above medium hardness. And it is widely used in metallurgy, building, hydropower, transportation, chemical industry, etc. You can call us on Tel: 0086-371-67660555

Materials:    Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

LeaveMessageChat Online

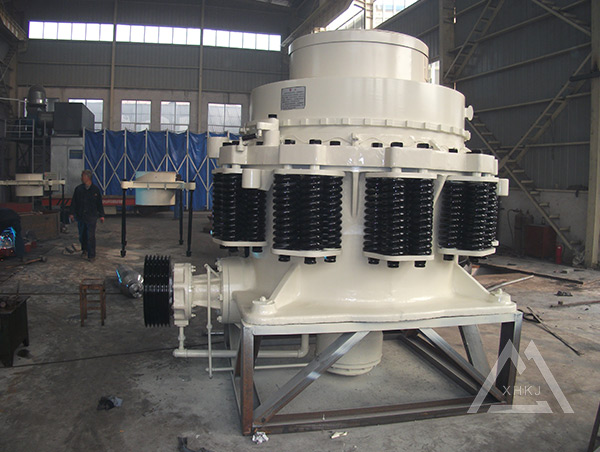

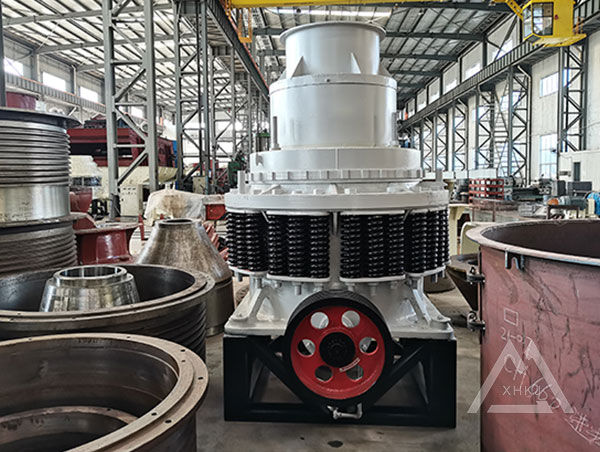

Spring cone crusher Product Description

 Spring cone crusher is suitable to crush all kinds of ores and rocks with medium hardness and above. It has features of reliable structure,high efficiency,high capacity,low operating cost,easy adjustment ,economical to use and so on. Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine. It adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.


Spring cone crusher Working Principle

Spring cone crusher working principle :During operation, the motor of goodpy series spring cone crusher price drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed. To ensure the precision of thrust bearing installation in spring cone crusher, installation must be the following steps: first, the installation of the thrust bearing should be same to steps of scratching; jaw plate placed in a case back should be smooth,if case back has the burr and the remaining sand,please clean up.Then pour lubricating oil to just the top of jaw plate. then install the middle circle plate and circle plate. Finally, install the air eccentric shaft, spherical tile racks, and spindle. When installing air eccentric shaft,the big gear weight should be placed in the top of small gear,so that the outer end of bevel gear is alignment. After spherical wham installed, the gap between spherical bearing seat and the main machine is as big as possible.

Spring cone crusher Features

spring cone crusher features :

1.The crushing cavity is specially designed according to the inter-particle laminating principle. The specially-designed cavity and the adjustable rotating speed improve the crushing ratio and capacity as well as the percentage of cubically shaped products;
2.If something abnormal happens, for instance, the iron is fed into the crushing cavity, or there is a jam in the cavity, the upper cover will be lift up and the materials will be discharged automatically, thus obviating the stoppage of machines to discharge the materials with human help. And it’s also easy to maintain, and the cost is much lower than Spring Cone Crusher;
3.Its reliable performance is guaranteed by the hydraulic adjusting system and dilute oil lubricating system. The labyrinth-like sealing system eliminates the mixture between water and oil in the traditional Spring Cone Crusher.


Spring cone crusher Specification

 spring cone crusher technology specfications:


Dia. of Cone


Adjusting Range

of Discharge Opening


Max Feed Size


Capacity (t/h) Motor Power (kw) Weight (t)

Overall Dimension


PYB-600 600 12-25 65 15-25 30 5.5 1740×1225×1940
PYD-600 3-13 36 5-23 30 5.5 1740×1225×1940
PYB-900 900 15-50 115 50-90 55 10.18 1990×1640×2380
PYZ-900 5-20 60 20-65 55 10.19 1990×1640×2380
PYD-900 3-13 40 15-50 55 10.27 1990×1640×2380
PYB-1200 1200 20-50 145 110-200 110 24.7 2805×2300×2980
PYZ-1200 8-26 100 50-150 110 25 2805×2300×2980
PYD-1200 3-15 50 18-105 110 25.6 2805×2300×2980
PYB-1750 1750 25-60 215 280-480 155-160 50.6 3610×2950×4185
PYZ-1750 10-30 185 115-320 155-160 51 3610×2950×4185
PYD-1750 5-15 85 75-230 155-160 50.5 3610×2950×4185
PYB-2200 2200 30-60 300 590-1000 260-280 84 4790×3430×5080
PYZ-2200 10-30 235 200-580 260-280 85 4790×3430×5080
PYD-2200 5-16 110 120-370 260-280 85 4790×3430×4852
