INTRODUCTION

► Capacity: 250 t/h
► Raw material : River Stone
► Max feeding size:630mm
► Final product size : 0-5mm, 5-10mm,10-20mm,20-30mm,30-80mm
► Delivery: 25-30 days
► Application: Highway pavement material,sand and gravel aggregate for high speed passenger railway line, hydropower station

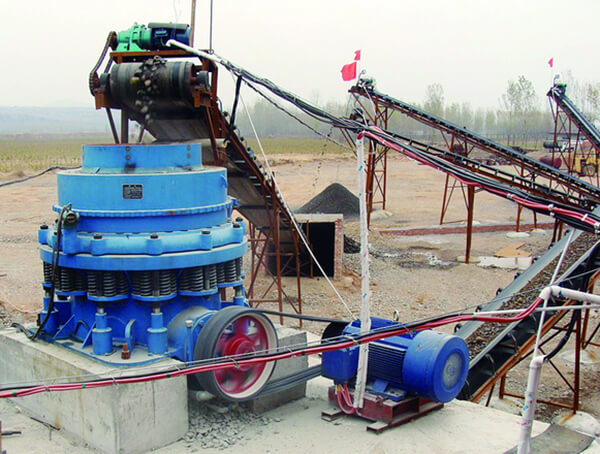

► Equipment Configuration of River Stone Crushing Plant:
1set ZSW490*110 Vibrating Feeder + 1set PE750*1060 Jaw Crusher + 1sets XHP300 Hydraulic Cone Crusher + 1set 3YK2470 Vibrating Screen + 1set B1000×15mBelt conveyor +1set B1000×18mBelt conveyor +1set B1000×25mBelt conveyor +1set B800×32mBelt conveyor +1set B500×15mBelt conveyor + Electronic control system

► Design  Description:
Big raw river stone will be fed into jaw crusher for primary crushing by vibrating feeder. After primary crushing, the material will be transferred to secondary crushing machine like Hard Material crusher for further crushing. Usually, we will equip the river stone crushing & screening plant with multi-deck vibrating screen. The vibrating screen is a key equipment to sieve the crushed stones into different grades. The crushed stone that meet the demands will be transported to the stockpile, the other will be sent to secondary crusher for fineness crushing.

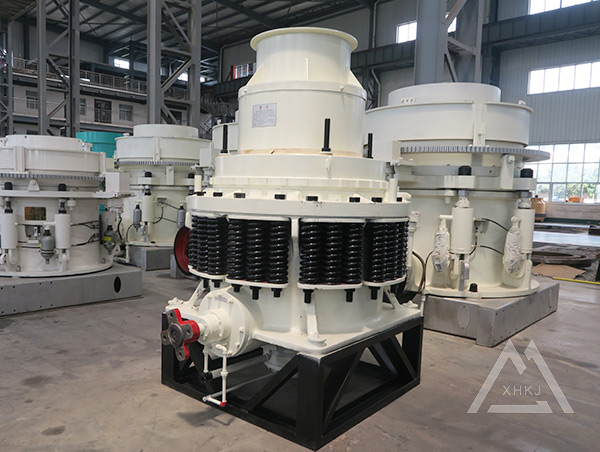

In the plant, raw river stone will probably be fed into jaw crusher for primary crushing by vibrating feeder. After primary crushing, the material will probably be transferred to secondary crushing equipment like hydraulic cone crusher for further crushing.
