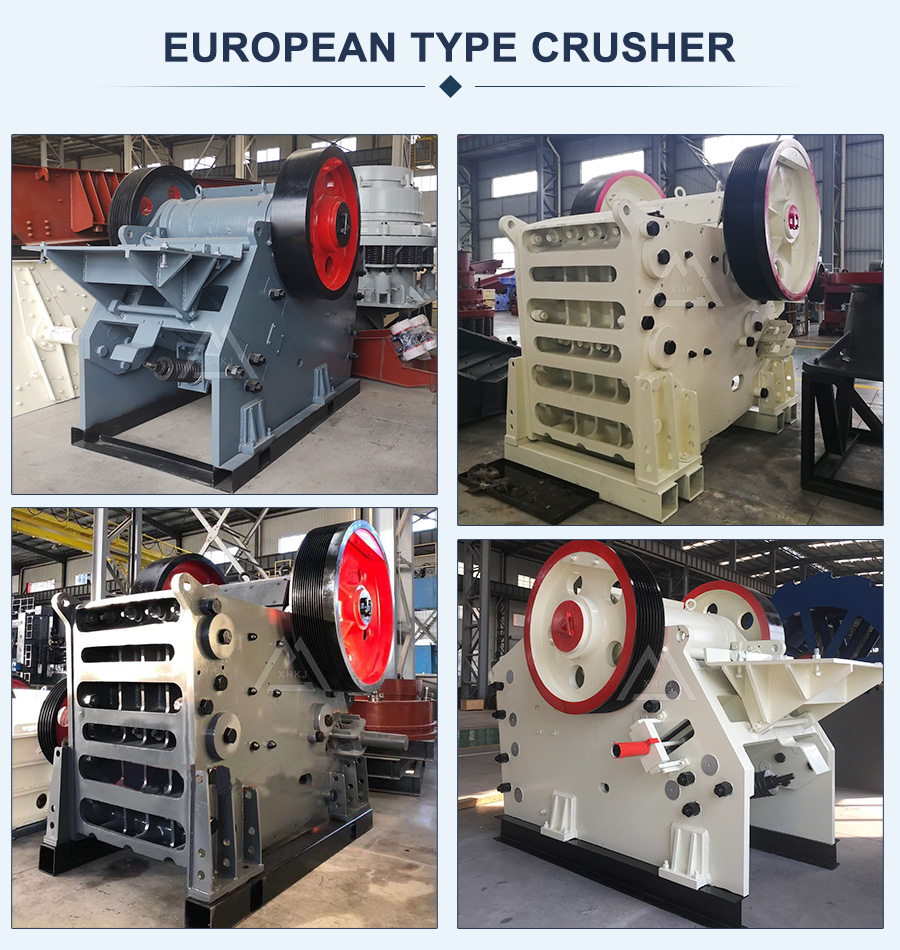

ZXC series European Type Jaw Crusher

Input Size:425mm-1250mm

Capacity:55-1590TPH

Type:Primary Crusher

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • facebook
  • youtube
  • linkedin
  • google+
  • twiter
  • wiki
  • blogspot

Product Description

 Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

Working Principle

The jaw crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.

Features

1.Deep cavity which prompts the feeding capacity and output.
2.Large reduction ration and even production size.
3.Convenient and reliable adjustment device of the spacer style discharging mouth.
4.Big adjustment range of the outlet which can satisfy the requirement of different customers.
5.Energy conservation: every single machine can save energy by 15%-30% which is more than twice of general single machine.

Specification

Model ZXC96 ZXC106 ZXC110 ZXC125 ZXC160
Width of feeding opening
(mm)
930 1100 1100 1250 1600
Deepth of feeding opening
(mm)
580 630 850 950 1200
The max feeding size
(mm)
460 530 680 760 960
Power (kW) 90 110 160 160 250
Eccentric shaft speed
(rpm)
330 280 230 220 220
Capacity
(tph)
120-455 170-330 190-625 290-845 520-1275
The width of discharge opening size
(mm)
60-175 110-170 70-200 100-250 150-300
Overall dimension (L×W×H)
(mm)
2830×1983×1924 3346×2111×2376 3890×2374×2836 4111×2596×2952 5690×3318×3843
Weight (kg) 11353 18700 26150 39239 79993
Output size
(mm)
The tight side discharge opening
(mm)
Ton/Hour Ton/Hour Ton/Hour Ton/Hour Ton/Hour
0-30 20
0-35 25
0-45 30
0-60 40
0-75 50
0-90 60 120-155
0-105 70 140-180 155-200 190-250
0-120 80 160-210 175-230 210-275
0-135 90 180-235 200-260 235-305
0-150 100 200-260 220-290 255-330 290-380
0-185 125 250-325 280-365 310-405 350-455
0-225 150 300-390 335-435 370-480 410-535 520-675
0-260 175 350-455 390-510 425-550 470-610 595-775
0-300 200   445-580 480-625 530-690 675-880
0-340 225       590-770 750-975
0-375 250       650-845 825-1070
0-410 275         900-1170
0-450 300         980-1275
