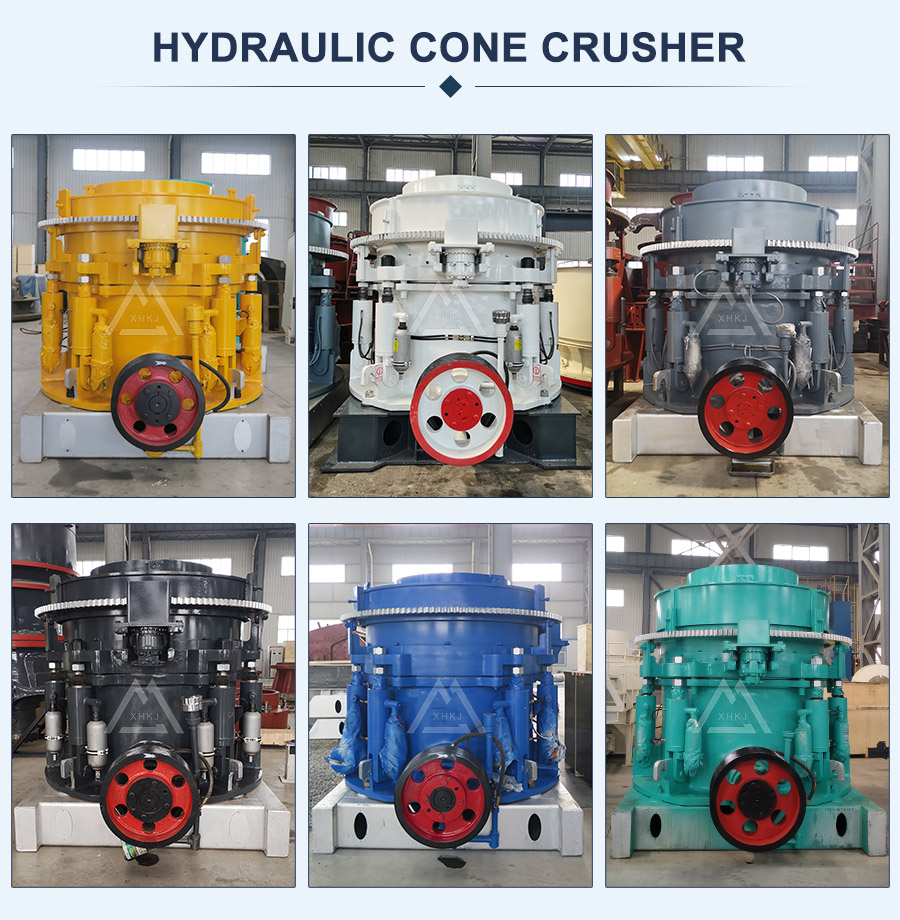

Hydraulic cone crusher

Input Size:95mm--353mm

Capacity:90-1200 TPH

Type:Secondary Crushing

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • whatsapp
  • skype
  • facebook
  • youtube
  • linkedin
  • twiter
  • blogspot

Product Description

The cone crusher not only improves the production capacity and crushing efficiency, but also widens the applying area, from limestone to basalt, from stone production to various ore crushing. It has a second-to-non crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher .

Working Principle

Hydraulic cone crusher working principle :When XHP series multi-cylinder hydraulic cone crusher works, the motor drives the outer copper rotate through V-belt, host pulley, drive shaft, a small bevel gear, a large bevel gear. The outer copper forces crushing cone shaft axis of the outer copper to make rotating swing, making crushing surface.
Sometimes near and sometimes leave the concave surface, so that the material is impacted, squeezed and bent in the ringlike crushing chamber consist of fixed cone and movable cone. After repeated squeezed, shocked, and bent, the material crushing to the required particle size is discharged from the lower part.
The particular crushing chamber adopting principle of intergranular lamination and matching rotor speed obviously improves the crushing ratio and productivity, largely increase the amount of cubic final product. Adopting hydraulic protection and hydraulic cavity clearing, high degree of automation, the hydraulic system can be up top and discharge automatically when the crusher is blocked instantly or over-iron, which eliminates trouble of halting to clear the material manually. It makes the maintenance more easier, cost lower. The hydraulic adjustment and oil lubrication make the crusher more steady and reliable. It also adopts labyrinth sealing mode, which avoids oil mixing with water easily.

Features

Hydraulic cone crusher features :

1. Optimization design of ship form frame structure, the low vehicle chassis, compact and reasonable structure, modular assembly structure, small turning radius and convenient transporation.
2. Folding type feeding bin, hydraulic support guard board, easy and reliable operation
3. The control cabinet equips with the advanced words touch control screen, PLC control system, ensureing the function of starting, process adjustment, misoperation tip and protection, electrical control operation, fault and safety tip.
4. The feeder can presort fines, automatic design for silo door, controlling the direction of dividing material
5. The angle of conveyor is adjustable, and the conveyor can be turned and folded, extending operation conditions, easy for transporation.
6. Adopt stream-line design for vehicle structure, compact and reasonable mechanics optimization structure.

Specification


Model

Cavity

Standard Type

Short Type

Power

Capacity (t/h)

      Weight
(t)


Feeding Size (mm)

Min Discharging Size (mm)

Feeding Size (mm)

Min Discharging Size (mm)

(kw)

XHP200

Super coarse









132-200

90-250

14

Coarse

185

19

76

10

Medium

125

17

54

6

Fine

95

13

23

6

Super Fine





10

5

XHP300

Super coarse

230

25





180-250

115-440

19.96

Coarse

210

20

75

10

Medium

150

15

50

8

Fine

105

10

20

6

Super Fine





20

6

XHP400

Super coarse

295

30





280-355

140-630

28.72

Coarse

250

25

90

10

Medium

195

20

50

8

Fine

110

14

40

6

Super Fine





30

6

XHP500

Super coarse

330

30





355-450

175-790

38

Coarse

285

25

90

13

Medium

200

20

55

10

Fine

133

16

40

8

Super Fine





35

6

XHP800

Super coarse

353

32





550-630

260-1200

64.1

Coarse

297

32

160

13

Medium

250

25

100

10

Fine

220

16

50

5

Super Fine
