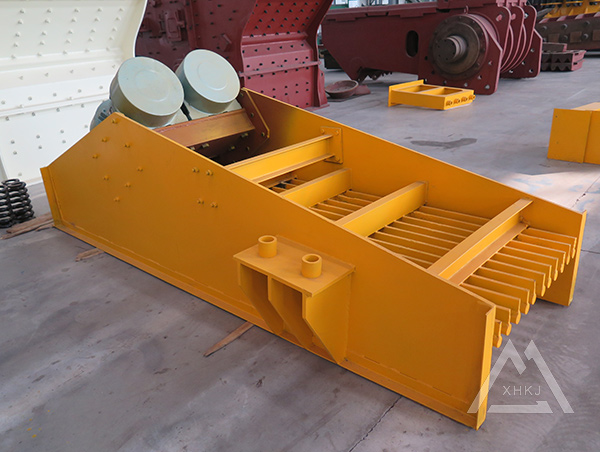

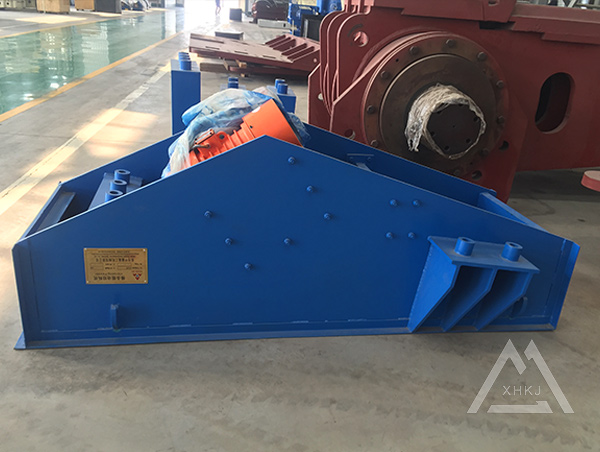

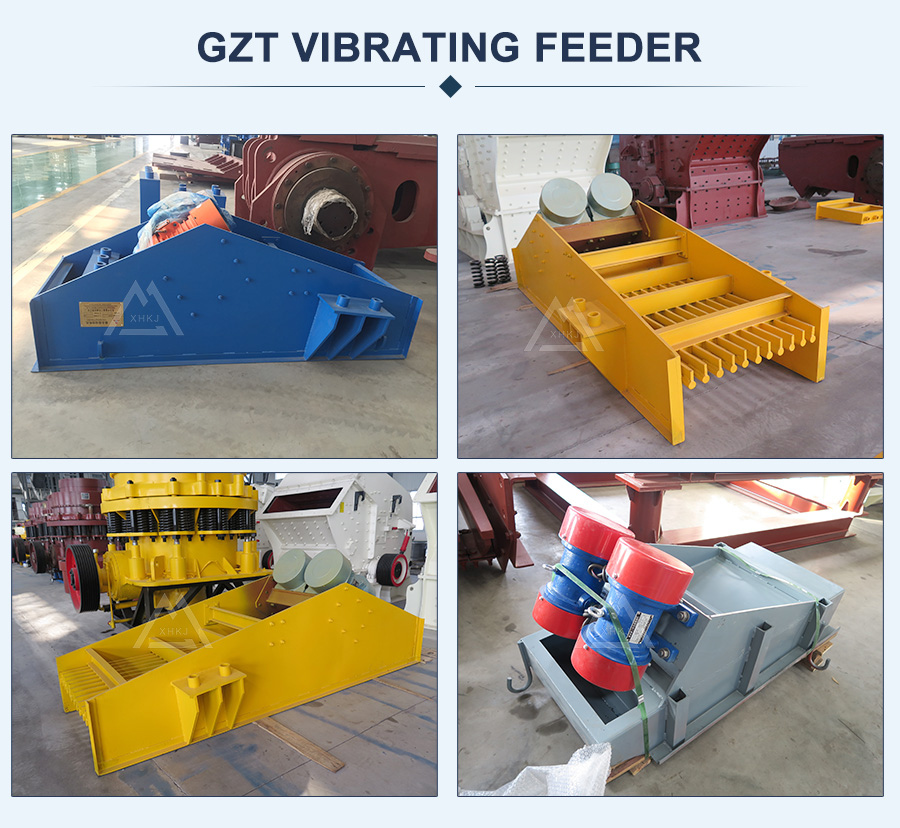

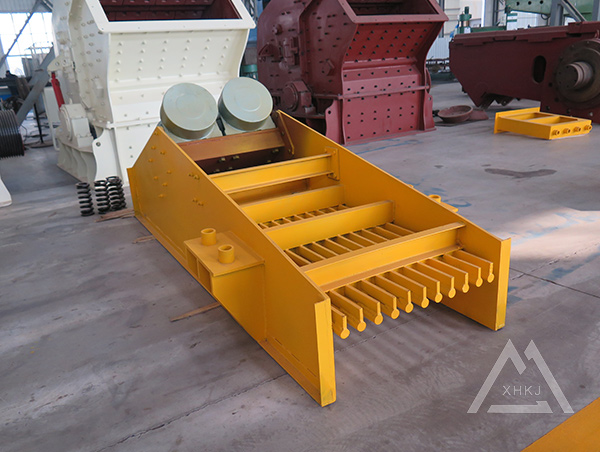

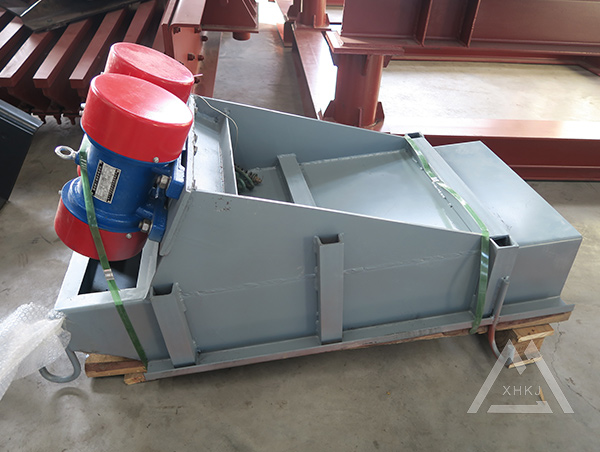

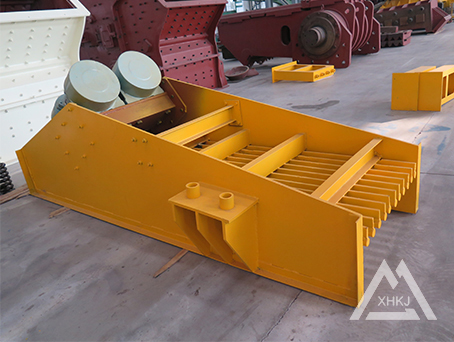

GZT Series Vibrating Feeder

Input Size:0mm--1000mm

Capacity:30-600TPH

Type:Necessary Auxiliary Equipment

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • facebook
  • youtube
  • linkedin
  • google+
  • twiter
  • wiki
  • blogspot

Product Description

GTZ Series Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed material into the primary crusher homogeneously, meanwhile because of the bar-shaped screen, it can screen away soil contained in the raw material, increase the capacity of the primary crushing. It is suitable for feeding material into the primary crusher in hydropower field, building material and mining.



Working Principle

The vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.

Features

1.Smooth vibration
2.Special bar to prevent the block of raw material
3.The distance between bars is adjustable
4.Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.
5.Simple structure, even feeding, good continues performance
6. Large capacity and high efficiency, low noise and power consumption.
7. Stable and smooth vibrating, long working life.
8.Vibrating force adjustable, easy to operation and maintenance.

Specification



► Technical Data:



Model Max Feed Size(mm) Capacity (t/h) Motor Power (kw) Installation Slope(°) Double Amplitude (mm) Overall Dimensions(mm) Weight (kg)
GZT-0724 450 30-80 2*1.5 10 4-6 2481*1130*990 2422
GZT-0932 560 80-150 2*2.4 10 4-8 3298*1512*1195 3203
GZT-0940 560 80-180 2*3.7 10 4-8 4100*1818*1134 3700
GZT-1148 600 150-300 2*5.5 10 4-8 4926*1676*1475 5060
GZT1256 800 180-400 2*7.5 10 4-8 5704*1840*1492 6385
GZT-1560 1000 400-600 2*13 10 4-8 6110*2440*1560 8900
