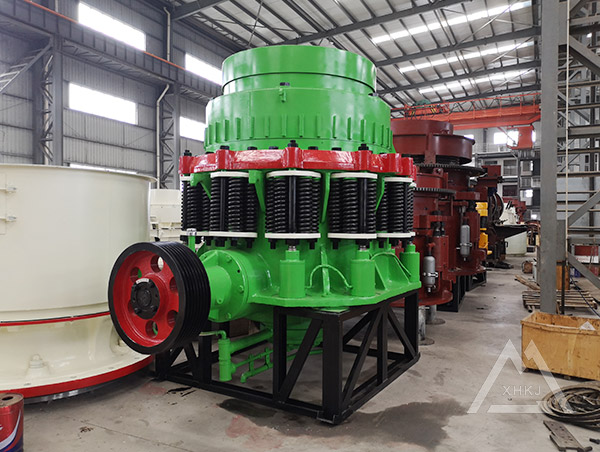

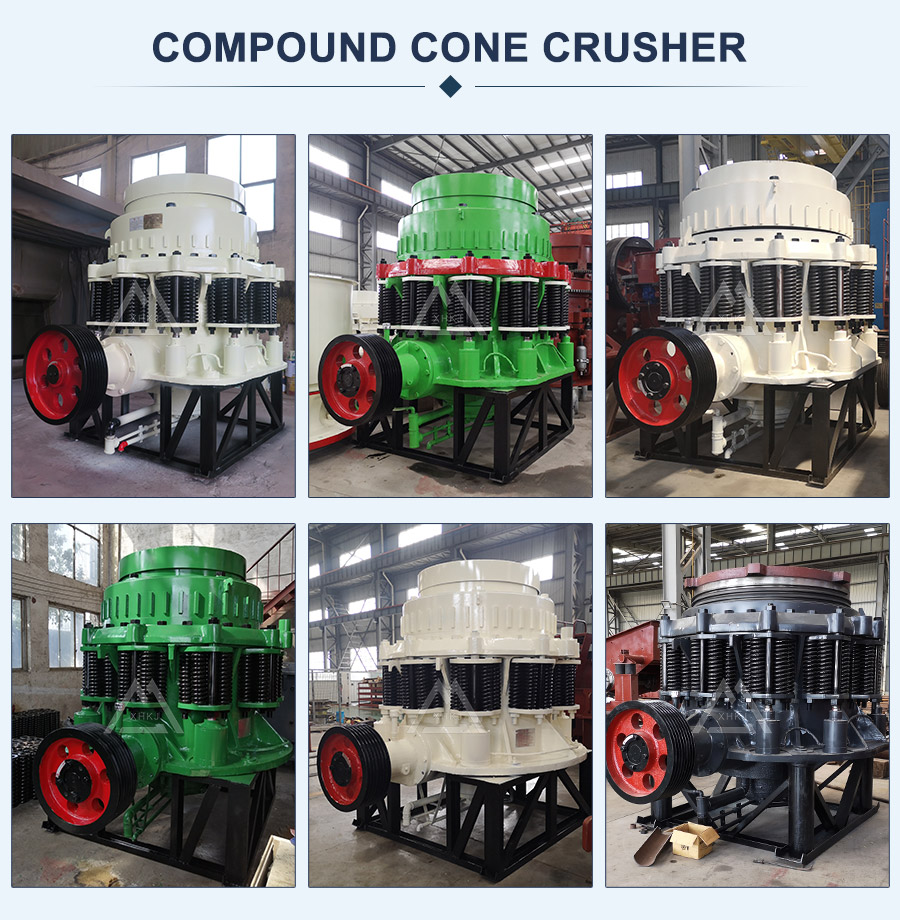

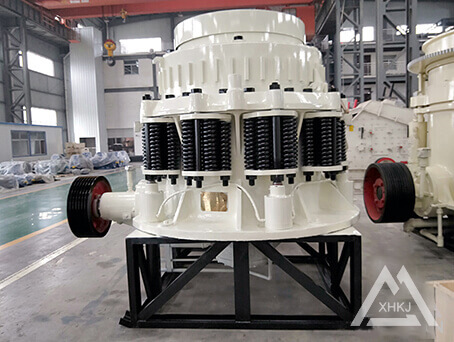

Compound Cone Crusher

Input Size:80mm-300mm

Capacity:80-610TPH

Type:Secondary Crushing

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • facebook
  • youtube
  • linkedin
  • google+
  • twiter
  • wiki
  • blogspot

Product Description

 ZX compound cone crusher is a high performance cone crusher and it is manufacture by introducing advanced foreign technology with relible performance and superior quality.It has unique hydraulic clearing system,hydraulic opening adjustingfunction,easy for changing movable and fixed plate,dacreasing managemengt and maintence cost,It is widely used for medium and fine crushing of granite,basalt,disbase,cobble,cobblestone,iron,ore etc.which is well received by customers.


Working Principle

ZX compound cone crusher manufacturer work, the rotation of the motor through the pulley or coupling, drive shaft and the cone of force in the eccentric sleeve moving around a fixed for rotary movement, so that the cone crusher in the crushing wall and near and sometimes leave is fixedly arranged on the regulating sleeve rolling white surface, the ore constantly under attack in the crushing cavity, extrusion and bending and crushing ore achieved. At unbreakable foreign body through the crushing chamber or for some reason compound cone crusher manufacturer is overloaded, the spring system of insurance, the mouth of discharge increases, foreign bodies from the crushing chamber is discharged, such as blocking in row ore using cavity cleaning system, so that the discharging continues to increase, so that the foreign body removal of crushing cavity. Under the action of the spring, the gape is automatically reset, the machine returns to normal work.

Features

ZX compound cone crusher features

1. The broken cavity is deep and without dead area, which increases the feeding capacity and output.
2. High-manganese steel are used for liners;
3. The size reduction ratio is big.
4. High rotation speed of movable jaw and the arc jaw plate design increase production capacity.
5. Lubrication system of jaw crusher is safe and reliable.
6. The adjustment range of the outlet is big what improves the flexibility of equipment and also satisfies the requirements of different customers.
7. With low noise and less dust.

Specification



Compound cone crusher specification



Model
Cavity Type
Stroke(mm)
Max.Feeding Size(mm)
Discharging Opening Adjusted Scope(mm)
Capacity(t/h)
Motor Power(kw)
Weight(t)
ZX1650C2-D
Coarse
34
300
35-65
280-610
250
35
ZX1650C-D
Coarse
34
260
30-60
2665-580
250
35
ZX1650Z-D
Medium Coarse
34
240
25-60
240-550
250
35
ZX1650S-X
Fine
28
130
20-45
180-350
250
35
ZX1400C-D
Coarse
30
235
30-60
210-530
220
25
ZX1400Z-D
Medium Coarse
30
215
25-50
200-500
220
25
ZX1400Z-X
Medium Coarse
25
180
22-45
180-475
220
25
ZX1400S-X
Fine
25
100
19-40
130-260
220
25
ZX1200C-D
Coarse
22
180
19-50
110-250
132
16
ZX1200S-X
fine
15
80
16-40
80-180
132
16
