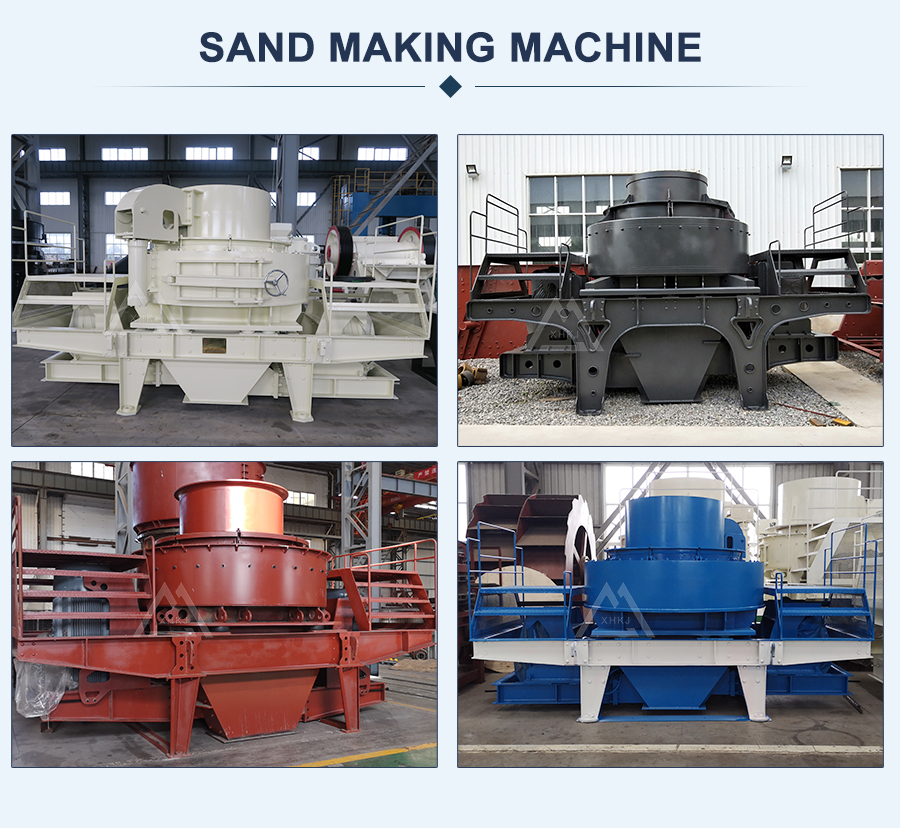

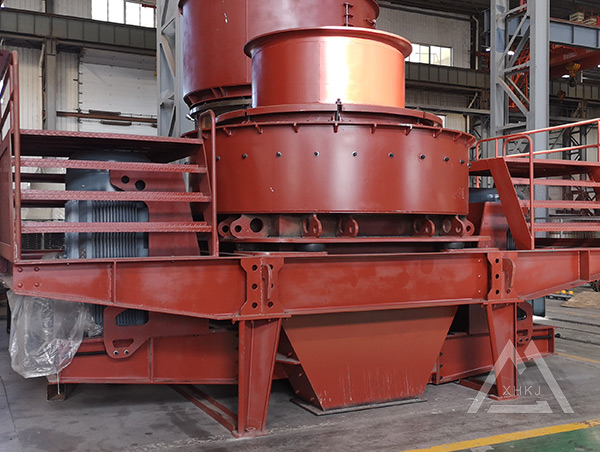

Sand Making Machine

Input Size:30mm--50mm

Capacity:60-450 TPH

Type:Tertiary Crusher

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • facebook
  • youtube
  • linkedin
  • google+
  • twiter
  • wiki
  • blogspot

Product Description

Sand Making Machine used to produce artificial sand and plaster sand; sand manufactured by crushing “Grit” , The sand making machine is specially designed for manufacturing artificial sand from the grit. It is a better utilization of the  size of rock materials and stones through rock on rock metal machine mechanism roughly.

Working Principle

Sand Making machine is used for manufacturing Artificial sand. The crushing principal in VSI Crusher and Sand Making Machine are the same. Sand making machine consist of a rotor which revolves a high speed and throws stone particle at vigorous velocity. These stone particles collides on anvil or autogenious stone lining in crushing chamber. The stone particles having kinetic energy when it strikes on crushing chamber brakes into small cubical particles. Crushed particles comes out from the outlet at the bottom of the machine.

Features

1、“stone striking stone” working principle, low electricity consumption.
 2、Strong ability of through the non-crushing material, low effects by the material moisture content.
 3、Suitable to crush stones with mid-hardness, high hardness, and super high hardness.
 4、Mechanism for the production of sand, the gradation of finished product is in an adjustable fineness modulus.
 5、Simple structure, low cost, easy operation/ maintenance and installation.
 6、Low noise and the dust pollution.
 7、Low weight and various installation, can be installed on mobile.


Specification

Model  VSI7611  VSI8518  VSI9526  VSI1140  VSI1145
 Capacity (T/H)  Surrounding feed and center feed  120-180  200-260  300-380  450-520  500-640
Full center feed  60-90  100-130  150-190  225-260  250-360

The max feeding size(mm)

Soft stone  35  40  45  50  50
 Hard Material  30  35  40  45  45
Speed(r/min)  1700-1890  1520-1690  1360-1510  1180-1310  1200-1390
Double motor power(kW)  110  180  264  400  440
 Dimension L×W×H (MM)  3700×2150 ×2100  4140×2280 ×2425  4560×2447 ×2778  5000×2700 ×3300  5100×2790 ×3320
 Weight (t)  11.8  14.5  17.8  25.6  26
Lubrication station  Double oil pump motor power(kW)  2×0.55kW
 Security One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return,Air cooler lowers oil temperature, heater warms up oil temperature in winter.
 Over Dimension L×W×H(mm)  1200Х790Х1120
 Tank heater power(kW)  2
