Introduction of Simmons Cone Crusher Application and Field of Use

Time：2023-07-13 10:36:03 Share To

　　Simmons cone crusher is the earliest cone crusher in the *, and it is also the * widely used crusher in the *. On the basis of introducing and absorbing foreign technology, according to customer needs, adopting the principle and concept of laminated crushing, it has into a modern high- cone crusher integrating high swing frequency, optimized cavity shape and reasonable stroke. More crushing and less grinding. After optimization and improvement by experts, the structure of Simmons cone crusher is more reasonable, the technology is *, and it performs well in manufacturing, inst ation, use and maintenance.

　　Field of application

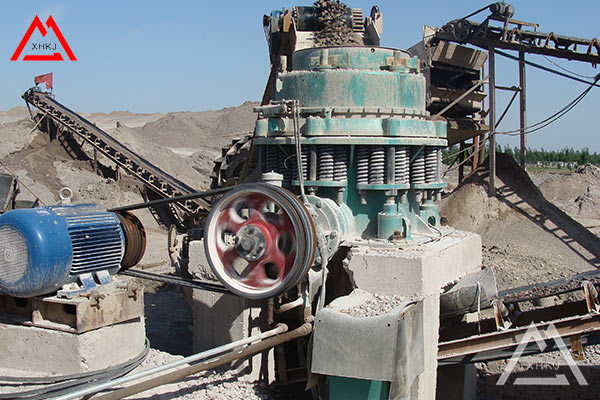

　　It can be widely used in metal and non-metal mines, cement plants, building construction, sand making and met urgy, etc. Also suitable for iron ore, non-ferrous metal ores, granite, limestone, quartzite, sandstone, pebbles, etc.

　　Simmons Cone Crusher Applied Materials

　　However, since the Simmons cone crusher is crushed by reducing the size of the discharge port to control the particle size of the product, this machine is not suitable for use as an ultrafine crusher or sand making machine.

　　It has the following advantages

　　Multiple types of crushing chambers: According to the site conditions, users can choose three different crushing chambers, with high crushing efficiency, uniform product size, good particle shape, uniform wear on the concave surface, and long service life of wearing parts.

　　Dust-proof dry oil seal: adopts a* dust-proof sealing structure, which is reliable and effectively prolongs the replacement cycle of lubricating oil and the service life of parts.

　　Support large crushing ratio: key parts are made of special materials. There is a large space for the crushing cone to leave the concave surface in each stroke, owing more materials to enter the crushing chamber, forming a larger discharge volume and speeding up the passage of materials through the crushing chamber.

　　High output: Compared with other models, the Simmons cone crusher has a long crushing arm, a large stroke, and a large crushing force. So it can effectively crush more materials in the crushing cavity.

　　High efficiency: The upper and lower ends of the main shaft of the machine are supported, which can withstand er crushing force and er stroke. In addition, it has a special crushing cavity shape suitable for the principle of lamination, which makes the machine have higher crushing efficiency.

　　Low daily operation and maintenance cost: Due to the reasonable selection of parts and structural design, the service life of parts is long, the crushing arm is long, and the load on sliding bearings, gears and frames is ly reduced; the particle size of the crushed products is uniform, and the cycle load is reduced; the hydraulic cleaning system is easy Operation and control, reducing downtime and power consumption.

　　Discharge opening adjustment: Simmons cone crusher contains a hydraulic adjustment mechanism, which can quickly adjust the size of the discharge opening.

　　Lubrication circulation system hefeiche.org: Special light oil lubrication circulation system ensures that the return oil temperature is within 60°C; a new oil filtration system ensures that the transmission device is not accident y worn, thereby stabilizing the service life. This * and reliable double-pump oil supply lubrication system ensures the temperature rise of the main shaft and copper tile, long service life, reliable operation and long maintenance cycle.

　　Overload protection: The spring safety system is an overload protection device that ows metal objects to pass through the crushing chamber without damaging the machine.
