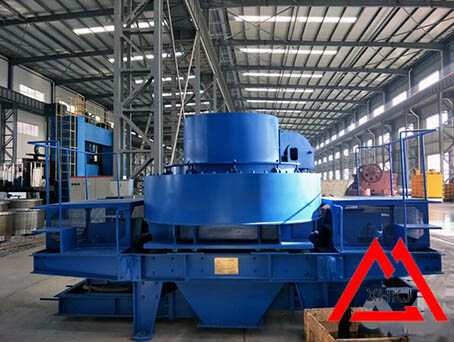

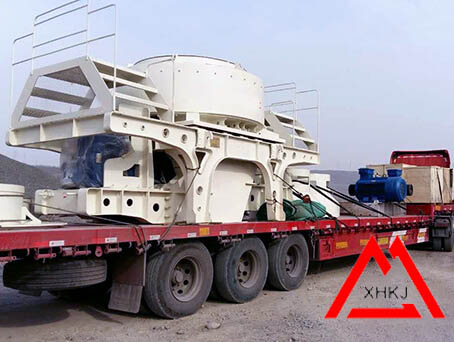

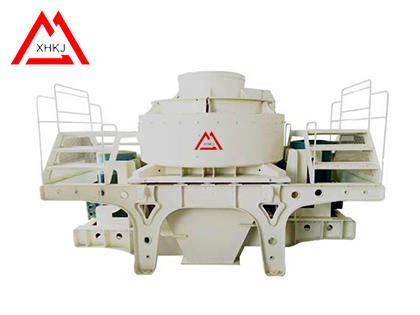

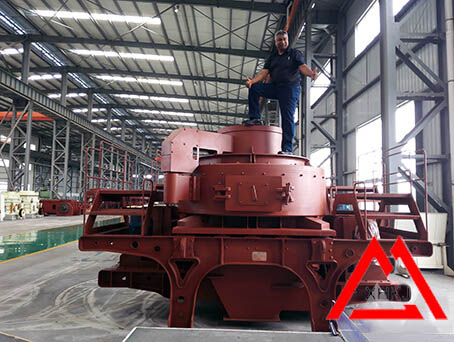

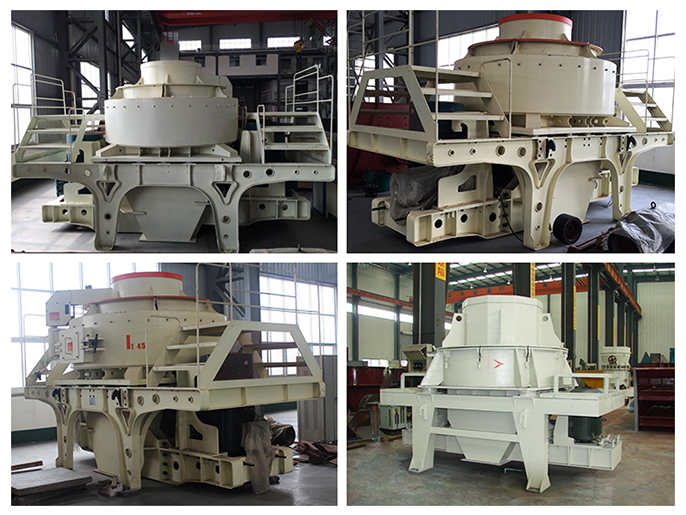

Vertical Shaft Impact Crusher

Overview:    It provides the high quality sand and crushed stone aggregate to the high-speed railroad, high-rise construction, municipal administration construction, water and electricity dam construction, concretes agitation station.Tel: 0086-371-67660555

Materials:    Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

0391-3373600Consulting
Working Principle

The material falls from the upper side of machine, then into the impeller, with the effect of centrifugal force, the material was crushed with other parts of the material which shunt around the impeller in a umbrella shape. After the cross impacting, the materials will be forming an eddy current and then impact, crush with each other again, then discharging from the lower part. The whole system forms a close circuit and through multi-cycles, finally matched granularity of the final product by the control of screen set.

Features

1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.

Product Description

Vertical shaft impact crusher is widely used in all kinds of minerals. It provides the high quality sand and crushed stone aggregate to the high-speed railroad, high-rise construction, municipal administration construction, water and electricity dam construction, concretes agitation station. It is the most effective machine at present. It is also applicable to crush various stones with different hardness in medium and fine crushing area. It is more advanced in intermediate hard, extra, extra hard and abrasive material crushing.







Technical Parameters

Model
 VSI7611  VSI8518  VSI9526  VSI1140
 Capacity (T/H)  Center And Ring Feeding  120-180  200-260  300-380  450-520
 Center Feeding  60-90  100-130  150-190  225-260

 Best Feed Size (MM)

 Soft Material  35  40  45  50
 Hard Material  30  35  40  45
 Rotation Speed (R/MIN)  1700-1890  1520-1690  1360-1510  1180-1310
 Power For Double Motor (KW)  110  180  264  400
 Dimension L×W×H (MM)  3700×2150×2100  4140×2280×2425  4560×2447×2778  5000×2700×3300
 Weight (t)  11.8  14.5  17.8  25.6
 Power Soppty  380V 50Hz
 Vibrating Sensor  Monitering Range:0.1-20MM/S Continuousely Adjustable
 Lubrication Hydraulic Station  Dual Oil Bump Motor    Power  2×0.25kW
 Security Protection  Double Oil Pump Ensure The Normal Oil Supply;Automatic Shut Down If No Oil Pressure;Water Cooling;Motor Preheating In Winter.
 Over Dimension L×W×H(mm)  820×520×1270
 Oil Tank Heating Power  2KW
